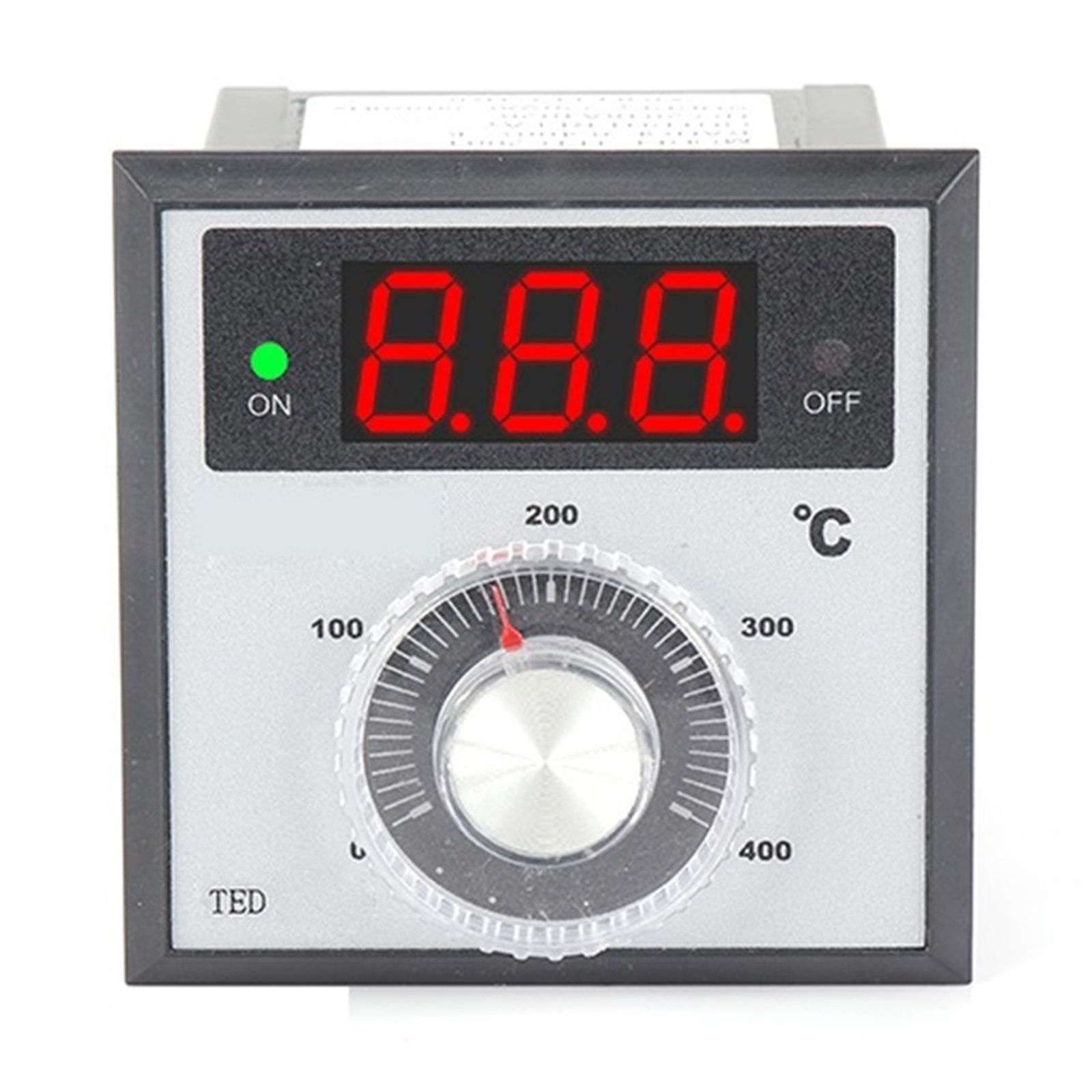

TED 72*72mm K J PT100 Type 24V 380V Knob 0-100 300 400 600 Degree Digital Thermostat Powered Temperature Controller ,Save Energy

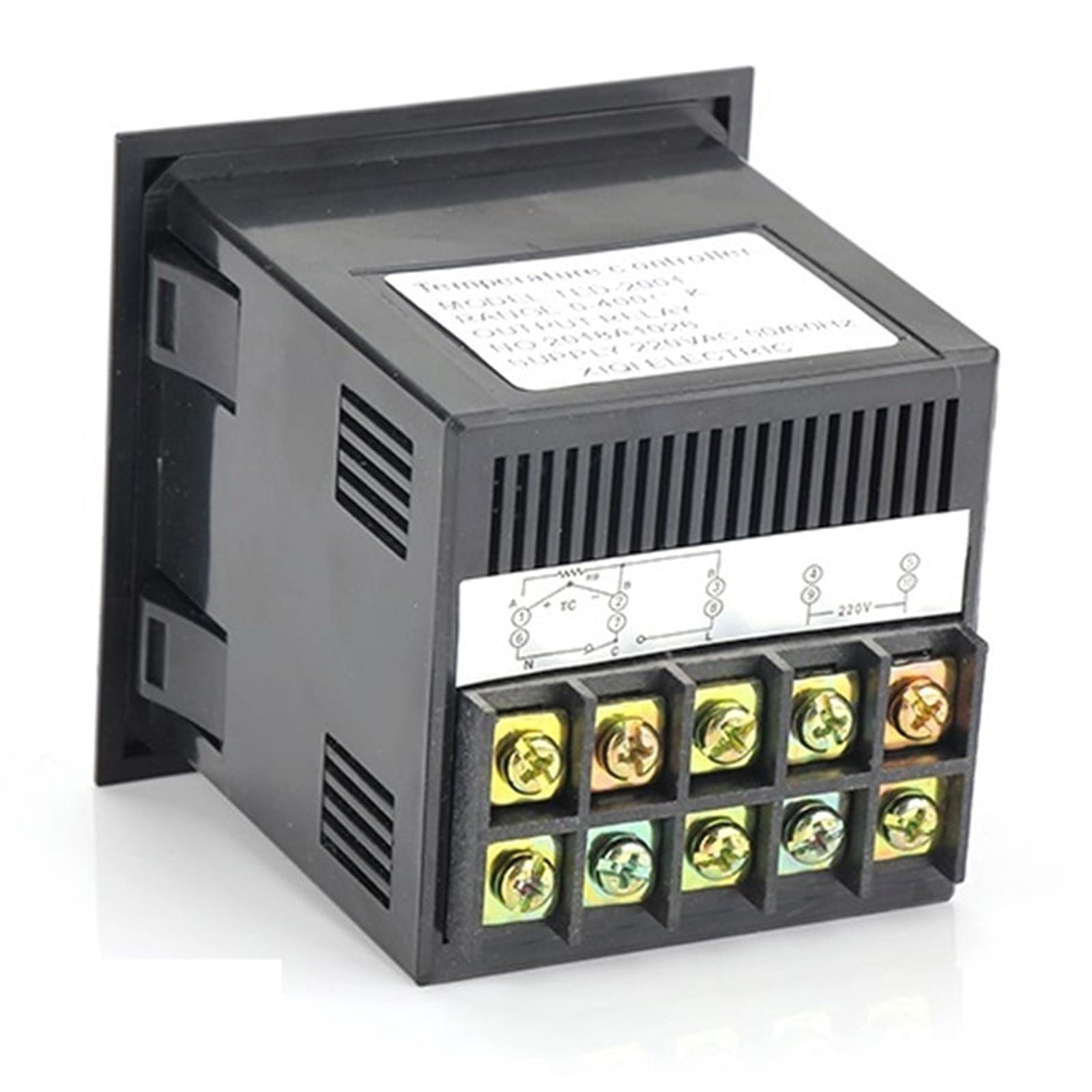

<p>Describtion</p><p>1. All of the controller series is AC 24V/ 380V, single input ,we can select K/ J/ PT100 when we place the order.</p><p>2. Controller is 1 relay output, the relay rated current is 5A,so if the laod power more than 1000W, we need add 1 AC contactor.</p><p>TED Instrument Manual</p><p>1. The meter type must be used with the sensor type. For example, the K type can only use the K type sensor. </p><p>2. Common faults: display HHH - sensor damage / missed /K or E not match. The temperature does not rise and fall when heater working or display LLL: sensor reverse connection / K or E not match. </p><p>3. If it is unclear which is fault between the sensor and the meter(E/K type). We can short the 1 and 2 terminals, and the meter shows that the temperature is almost the same as the normal temperature. It means the instrument is normal, the sensor (thermocouple) is broken. </p><p>4. This method is not applicable to the detection and judgment of CU50 and Pt100 thermal resistance type meters.</p><p>Instrument description and wiring instructions</p><p>6.7.8 Terminals are relay output terminals (passive output) 7 is a common point and 6 is a normally closed point. 8 is a normally open point.no power output. When the temperature does not reach the set temperature,the panel green light (ON) is on / 7 and 8 terminals are closed (conducted) :when the temperature reaches the set temperature or higher than the set temperature: the panel red (OFF) lights up / 7 and 6 twoTerminal pull-in (conduction)</p><p>The temperature difference of the controller is 2 degrees. When the normally open point is connected, the temperature rises to the set point and the contact open and the load stop heating. When the temperature falls below the set temperature by 2 degrees, it closes and load starts to work.</p><p>Related Products:wifi thermostat,thermostat,thermostat for house,smart thermostat,smart thermostats for home,ac thermostats for home,digital thermostat</p>

• Digital Display /It's a digital PID controller but also supports Centigrade and Fahrenheit reading
• 2 Temp Displaying WindowsThe real-time temperature and the setpoint are shown at the same time
• ModeAutomatic switch between cooling and heating modes, Fahrenheit and Celsius display can be choose.
• CalibrationTemperature calibrating, refrigerating control output delay protection.
• AlarmWhen temperature exceeds the limit or when sensor error it will alarm. It can be used for peltier water cooling device, cooling fan, car's 12v battery, 12 volt chest cooler,heater etc.
